PART NO:4644351076,4644.351.076
NAME:Shaft
Applilcation for ZF 4WG200 transmission that use for wheel loaders.

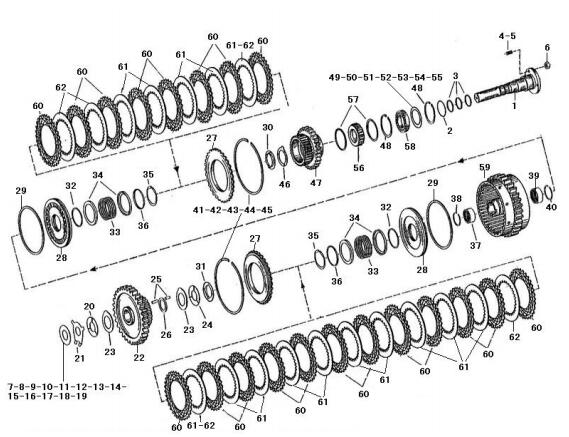

ZF 4WG200 离合器KV+K1 4644 151 COUPLNG KV+K1 4644 151
1 7200001532 轴4644351076 SHAFT 4644351076 Y 1
2 7200001533 O形圈(49*3)0634313536 O-RING (49*3)0634313536 Y 1
3 7200001534 活塞环0734401106 PISTON RING 0734401106 N 3
4 7200001535 螺柱(M8*30)0636610026 DOUBLE-SCREW BOLT (M8*30)0636610026 Y 1
5 7200001674 螺柱0636610014 DOUBLE-SCREW BOLT 0636610014 Y 1
6 7200001675 六角螺母(M8)0637006018 NUT (M8)0637006018 Y 2
7 7200001621 补偿垫圈（任选）0730003501 S=0.4 WASHER 0730003501 S=0.4 Y 1
8 4110000042052 调整垫圈s=0.6 0730 003 502 SHIM S=0.6 0730 003 502 Y 1
9 4110000042053 调整垫圈s=0.8 0730 003 503 SHIM S=0.8 0730 003 503 Y 1
10 4110000042054 调整垫圈s=1.0 0730 003 504 SHIM S=1.0 0730 003 504 Y 1
11 4110000042055 调整垫圈s=1.2 0730 003 505 SHIM S=1.2 0730 003 505 Y 1
12 4110000042056 调整垫圈s=1.4 0730 108 157 SHIM S=1.4 0730 108 157 Y 1
13 4110000042057 调整垫圈s=1.6 0730 108 158 SHIM S=1.6 0730 108 158 Y 1
14 4110000042058 调整垫圈s=1.8 0730 108 159 SHIM S=1.8 0730 108 159 Y 1
15 4110000042059 调整垫圈s=2.0 0730 108 160 SHIM S=2.0 0730 108 160 Y 1
16 4110000042060 调整垫圈s=2.2 0730 108 161 SHIM S=2.2 0730 108 161 Y 1
17 4110000042061 调整垫圈s=2.4 0730 108 162 SHIM S=2.4 0730 108 162 Y 1
18 4110000042062 调整垫圈s=2.6 0730 108 163 SHIM S=2.6 0730 108 163 Y 1
19 4110000042063 调整垫圈s=2.8 0730 108 164 SHIM S=2.8 0730 108 164 Y 1
20 7200001539 止推垫圈0730150759 THRUST WASHER 0730150759 Y 1
21 7200001540 止推垫圈4644303529 THRUST WASHER 4644303529 Y 1
22 7200001583 齿轮(Z=63)4644308625 GEAR (Z=63)4644308625 Y 1
23 7200001542 止推垫圈4644308265 THRUST WASHER 4644308265 Y 2
24 7200001543 止推垫圈0730150773 THRUST WASHER 0730150773 Y 1
25 7200001544 滚柱轴承组件0750119100 ROLL.BEARING ASSEMBLY 0750119100 Y 1
26 7200001545 垫圈4644308266 WASHER 4644308266 Y 1
27 7200001546 端垫4644308071 WASHER 4644308071 Y 2
28 7200001547 活塞4644351070 PISTON 4644351070 N 2
29 7200001590 密封环0750112139 PACKING RING 0750112139 Y 2
30 7200001549 止推垫圈4644351094 THRUST WASHER 4644351094 Y 1
31 7200001550 止推垫圈4642308555 THRUST WASHER 4642308555 Y 1
32 7200001551 密封环0750112140 PACKING RING 0750112140 Y 2
33 7200001552 压力弹簧0732041183 PRESSURE SPRING 0732041183 Y 2
34 7200001553 导向环4642308083 GUIDE RING 4642308083 N 4
35 7200001554 V形杯AV550630531346 V-CUP AV550630531346 N 2
36 7200001555 导向环4642308084 GUIDE RING 4642308084 N 2
37 7200001556 滚针轴承0635303203 NEEDLE BEARING 0635303203 Y 1
38 7200001557 挡圈0730513610 RETAINING RING 0730513610 Y 1
39 7200001558 滚针轴承0635303205 NEEDLE BEARING 0635303205 Y 1
40 7200001559 挡圈0730513611 RETAINING RING 0730513611 Y 1
41 7200001560 挡圈0730513181 A=2.50 RETAINING RING 0730513181 A=2.50 Y 2
42 4110000042020 挡圈A= 2.30 0730 513 434 SNAP RING A= 2.30 0730 513 434 Y 2
43 4110000042023 挡圈A= 2.40 0730 513 436 SNAP RING A= 2.40 0730 513 436 Y 2
44 4110000042018 挡圈A= 2.20 0730 513 459 SNAP RING A= 2.20 0730 513 459 Y 2
45 4110000042015 挡圈A= 2.10 0730 513 457 SNAP RING A= 2.10 0730 513 457 Y 2
46 7200001561 止推垫圈0730150779 THRUST WASHER 0730150779 Y 1
47 7200001562 齿轮4644351032 GEAR 4644351032 Y 1
48 7200001563 卡环(75*2.5)0630502037 CLASP (75*2.5)0630502037 Y 1
49 7200001564 调整垫圈(60*75*0.3)0630004168 AJUSTING SHIM (60*75*0.3)0630004168 Y 1
50 4110000042037 调整垫圈0630 000 055 SHIM RING 0630 000 055 Y 1
51 4110000042036 调整垫圈0630 000 054 SHIM RING 0630 000 054 Y 1
52 4110000042040 调整垫圈0630 004 246 SHIM RING 0630 004 246 Y 1
53 4110000042038 调整垫圈0630 004 232 SHIM RING 0630 004 232 Y 1
54 4110000042039 调整垫圈0630 004 233 SHIM RING 0630 004 233 Y 1
55 4110000042041 调整垫圈0630 004 364 SHIM RING 0630 004 364 Y 1
56 7200001565 滚针筒组件0735358132 ROLING NEEDLE ASSEMBLY 0735358132 Y 1
57 7200001566 角环0501308830 CERATOCRICOID MUSCLE 0501308830 Y 2
58 7200001568 球轴承0750116100 BALL BEARING 0750116100 Y 1
59 4110000042112 摩擦片支架4644 251 046 DISC CARRIER 4644 251 046 Y 1
60 7200001570 外摩擦片0501309330 OUTER CLUTCH DISC 0501309330 Y 12
61 7200001571 内摩擦片4644308329 INTERNAL FRICTION BLOCK 4644308329 Y 9
62 7200001572 内摩擦片4644308330 INTERNAL FRICTION BLOCK 4644308330 Y 1
